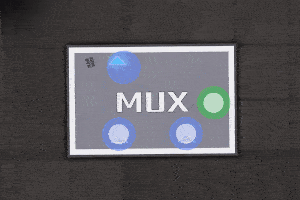

Multiplexer (MUX)

Category: OE Logic > Gates

Description: Outputs values depending on 'State' input.

Input types:
- Universal

State types: - bool - number - byte

Output types:
- Universal

Simulation:

Number/Byte State:

State	Output
≤ 0	False input
≥ 1	True input

Bool State:

State	Output
False	False input
True	True input
