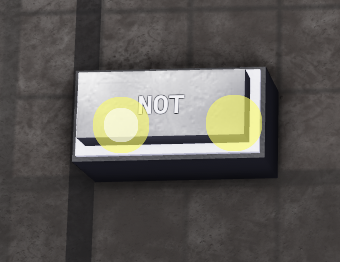

NOT Gate
Category: OE Logic > Gates
Description: Returns true when input is false, and vice versa.
Input types:
- boolean
Output types:
- boolean
Simulation:
| Input 1 | Output |
|---|---|
| 0 | 1 |
| 1 | 0 |
